Mr. Merlin Marr-Johnson reports

FITZROY MINERALS REPORTS COPPER RECOVERIES OF UP TO 82.6% FROM MINI-COLUMN TESTING, WITH PRELIMINARY LARGER-SCALE RESULTS TRENDING HIGHER, AT THE BUEN RETIRO COPPER PROJECT, CHILE

Fitzroy Minerals Inc. has released results from the initial phase of metallurgical test work completed by SGS Laboratories at the Buen Retiro copper project in Copiapo, Chile. The test program is evaluating the response of the project's three principal geometallurgical units (UGM or units) to heap-leach processing, to support the company's planned heap-leach development plan. The distinct units, based on mineralogy and grade, are high-grade oxide, low-grade oxide and Mixed. Mini-column testing, the first stage of column-based testing, is now complete, while larger-scale one-metre column tests are continuing and are already trending above the mini-column results.

Highlights:

• Mini-column testing confirms a favourable response to heap leaching across all three units, with total copper (CuT) recovery of 71.8 per cent (high-grade oxide), 59.9 per cent (low-grade oxide) and 82.6 per cent (mixed) after 21 days, with low-to-moderate net acid consumption (3.4 to 11.2 kilograms per kilogram) and excellent test reproducibility;
• Preliminary results from one-metre column tests are trending above the mini-column figures, still trending upward, and pointing to further improvement in copper recovery as leach time and scale increase; projections of the trend lines indicate column recoveries after 70 days of approximately 95 per cent (mixed), 85 per cent (high-grade oxide) and 74 per cent (low-grade oxide); to determine the expected industrial Cu recovery, those results should typically be multiplied by a scaling factor between 0.8 and 0.9;
• Favourable rock hardness (eight kilolwatt-hour per tonne, soft) and medium to moderate abrasiveness;
• The addition of chloride during agglomeration and leaching was identified as an opportunity to optimize copper recovery and acid consumption.

Merlin Marr-Johnson, president and chief executive officer of Fitzroy, commented: "These results exceed what we were hoping for from our first phase of metallurgical testing at Buen Retiro. Final copper recoveries of up to 82.6 per cent, achieved with low acid consumption and excellent reproducibility across three separate units in just 21 days, give us real confidence in the heap-leach case for the project. Even more encouraging is that the more representative, one-metre columns are trending higher, pointing towards a final recovery of 95 per cent after 75 days of leaching, for the mixed material. Combined with soft, easily crushed, moderately abrasive rock, this test work materially derisks our path toward heap-leach production at Buen Retiro. The work is being done on a large number of samples and is statistically robust. We look forward to closing out the one-metre column balances this month, starting three-metre column testing in November and reporting final metallurgical results in due course. "

Test program and sample basis

Buen Retiro's mineralization is classified into three principal geometallurgical units based on grade and mineralogy: high-grade oxide (CuT greater than or equal to 0.5 per cent), low-grade oxide (CuT between 0.2 per cent and 0.5 per cent) and mixed (characterized by the presence of tenorite, cuprite, native copper, chalcocite and green oxides).

Three composite samples (1,349 kg, 1,566 kg and 426 kg, representing high-grade oxide, low-grade oxide and mixed, respectively) were shipped to SGS's laboratory in Quilicura, Santiago, for metallurgical testing. In total 3,341 kg has been submitted, which will be subject to 208 separate tests. The test program is designed upon a staged approach:

• Iso-pH: 45 tests of one kg;
• Sulphation at laboratory scale: 66 tests of two kg;
• Mini-columns (40 centimetres by four-inch diameter): 55 tests of five kg;
• One-metre columns (100 centimetres by six-inch diameter): 30 tests of 30 kg;
• Three-metre columns (300 centimetres by six-inch diameter): 12 tests of 90 kg.

At each successive stage, the operating variables carried forward are narrowed in scope. In total, 10 mini-column tests were completed (six across the high-grade and low-grade oxide units and four for the mixed unit), together with hardness (Bond) and abrasiveness testing, and TIMA (Tescan integrated mineral analyzer) and XRD (X-ray diffraction) mineralogical analysis.

Mini-column results (closed metallurgical balance)

The mini-column campaign has been completed, with a closed metallurgical balance. The head grades of the three composites tested were as follows:

• High-grade oxide: 0.95 per cent CuT, with sequential copper analysis of 0.68 per cent acid-soluble Cu, 0.04 per cent cyanide-soluble Cu and 0.23 per cent residual Cu;
• Low-grade oxide: 0.35 per cent CuT, with sequential copper analysis of 0.18 per cent acid-soluble Cu, 0.05 per cent cyanide-soluble Cu and 0.12 per cent residual Cu;
• Mixed material: 1.24 per cent CuT, with sequential copper analysis of 0.67 per cent acid-soluble Cu, 0.30 per cent cyanide-soluble Cu and 0.27 per cent residual Cu.

Carbonate contents are relatively low, at 0.13 per cent for the high-grade oxide, less than 0.05 per cent for the low-grade oxide, and 0.44 per cent for the mixed material.

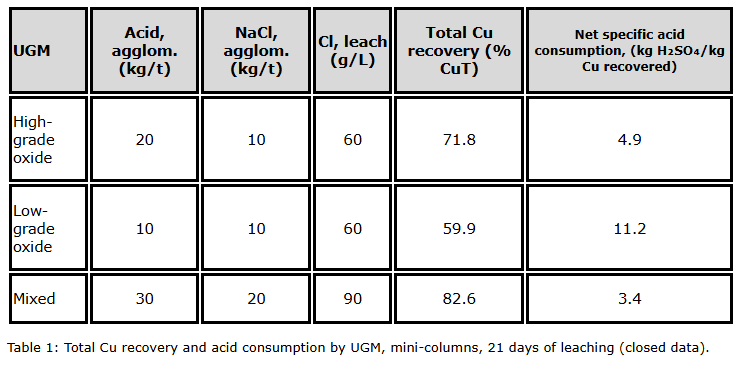

The test feed granulometry was 90 per cent less than one-fourth inch. At 21 days of leaching, under the best treatment conditions tested for each unit type, total copper recoveries of 71.8 per cent, 59.9 per cent and 82.6 per cent were achieved, respectively, at specific acid consumptions of 4.9, 11.2 and 3.4 kg H+ (hydrogen ions) per kg Cu (Table 1). Duplicate mini-column tests returned copper extractions within one percentage point of one another (Table 2), confirming good reproducibility. There are no duplicate results yet for the mixed ore tests.

Recovery kinetics for all three units show two distinct stages: an initial, fast-leaching stage associated with more soluble oxidized copper species (azurite, atacamite and chrysocolla), followed by a slower stage attributable to more refractory species (copper in iron oxides, limonite, chlorite and dioptase), which is consistent with SGS's TIMA and XRD mineralogical analysis. Because recovery curves for all three unit types were still trending upward at 21 days, the company expects further gains from extending leach time, as is already being tested in the one-metre columns.

On a specific-consumption basis, net acid use for the high-grade oxide and mixed units averaged 4.9 and 3.4 kg H+ per kg of copper recovered, respectively. This acid consumption is low and leaves room to extend the leach cycle to potentially lift copper recovery above 75 per cent for those two units that represent most of the resource. The low-grade oxide unit showed a higher specific consumption of 11.2 kg H+ per kg Cu, which limits the benefit of extending leach time for this unit.

Chloride addition, in the form of salt (NaCl) during agglomeration and as chloride in the leach solution, improved copper recoveries by three to five percentage points in both oxide units, at similar acid consumption. Chloride addition, therefore, has been identified as a further opportunity to optimize the flow sheet. For the mixed unit, increasing the agglomeration acid dose from 15 to 30 kg per tonne raised recovery by two to 4.5 percentage points, at the cost of higher acid consumption (up to 52.7 kg per tonne or 3.4 kg H+ per kg Cu); at constant acid dose, raising leach chloride concentration from 60 to 90 grams per litre improved extraction by a further three percentage points (79 per cent to 82 per cent).

One-metre column testing progress update

Six one-metre columns are currently in leach, comprising two of each unit type. The test feed granulometry is P90 less than one-half inch. The oxide units (C1401/C1402 high-grade oxide, C1403/C1404 low-grade oxide) have had 68 days of cumulative leaching, and the mixed unit (C1405/C1406) has had 53 days of cumulative leaching as at the date of this release. The metallurgical balance for these columns, which requires leach-residue analysis, has not yet been closed, and the results below are preliminary.

The best-performing columns for each unit type reflect the NaCl-in-agglomeration and chloride-in-leach conditions that are expected to be used at plant scale. Chloride leaching is trending toward preliminary copper recoveries of 85 per cent for the high-grade oxide (C1401), 74 per cent for the low-grade oxide (C1403) and approximately 95 per cent for the mixed unit (C1405).

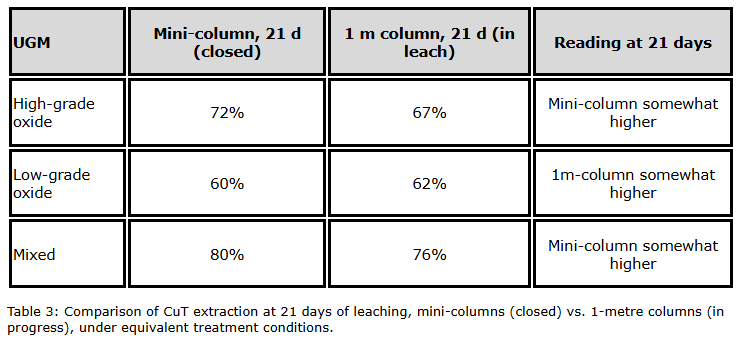

At the same 21-day leach time and under equivalent treatment conditions, results from the one-metre columns are close to, though modestly below, the mini-column figures (Table 2). This is consistent with expectations, since the mini-columns use a finer crush size (P90 equal to one-fourth inch) than the one-metre columns (P90 equal to one-half inch) and the one-metre columns are being run at a lower leach ratio. At 21 days of irrigation, the leach solution application ratio is 4.0 cubic metres per tonne for the mini-columns. At 70 days of irrigation, the leach solution application ratio reaches 3.6 cubic metres in the one-metre columns for oxides and 3.2 cubic metres per tonne for mixed ore.

When leaching is extended well beyond 21 days, the one-metre columns already exceed the mini-columns' final 21-day recoveries, corroborating the improving trend seen in the mini-column data as leach time increases. This preliminary reading will be confirmed once the metallurgical balance is closed. For copper oxide, leach time appears to be relatively more important than the leach ratio, and the plant will therefore be designed to provide sufficient heap-leach residence time to achieve the target copper recovery.

Hardness and abrasivity

Hardness testing on representative samples from the Buen Retiro pit returned low values, with Bond work indexes below eight kilowatt-hours per tonne across the lithologies tested, which is indicative of soft, low-competency material. This is favourable for the project, implying lower specific energy requirements at the crushing stage and reduced mechanical demand on primary crushing equipment. Abrasivity indexes for the same lithologies fall in a medium to moderate range, consistent with standard operating conditions, and suggest that wear on crusher liners, screens and conveying systems should be predictable and manageable using standard maintenance practices. Together, these results will have a favourable impact on the design of the project's crushing circuit. Measured densities were also above industry norms for comparable deposits, particularly for the massive-iron (FeM) lithology, which returned an average density of 3.67 grams per cubic centimetre.

Conclusions

The initial phase of metallurgical testing at Buen Retiro confirms a favourable response of the project's oxide and mixed mineralization to heap leaching. The closed mini-column results (CuT recoveries of 59.9 per cent to 82.6 per cent at acid consumptions of 3.4 to 11.2 kilograms per tonne at 21 days of leaching) compare well with benchmark heap-leach projects, and the positive effect of chloride addition on extraction, observed across both the oxide and mixed units, provides a clear avenue for further optimization. Preliminary results from the continuing one-metre column tests corroborate these findings and, for the high-grade oxide and mixed units, point to further improvement in recovery as leach time and scale increase, subject to confirmation once the metallurgical balances are closed. Combined with favourable hardness and abrasivity, this test work provides a solid technical basis for advancing the project.

Next steps

Leaching continues on the six one-metre columns, with metallurgical balances for these tests expected to be finalized at the end of September, 2026. The company anticipates completing its full one-metre column test campaign by mid-December, 2026 (30 columns starting soon), with three-metre column testing (representative of industrial-scale operation) and ROM (run-of-mine) 10-inch columns testing expected to begin in early November, 2026, or possibly earlier. The company expects to complete the overall metallurgical test campaign and issue a final report by March 1, 2027. Results from this test work will be incorporated into the company's PFS (prefeasibility study) for Buen Retiro, planned for release in Q2 2027.

Quality assurance and quality control

The metallurgical test program was carried out under a documented QA/QC protocol prepared by SGS Minerals SA and the company's metallurgical team, in order to ensure the reliability and traceability of the results reported herein.

The samples composites were identified at source, sealed in tamper-evident containers and shipped under chain-of-custody documentation to SGS Minerals, Puerto Madero No. 9600, Pudahuel, Chile, a laboratory independent of the company and accredited to ISO/IEC 17025, ISO 9001:2015, ISO 14001:2015 and ISO 45001:2018. Sample identification and condition were verified against the shipping manifest upon receipt. Sample preparation and mass reduction were performed in accordance with Gy's sampling theory to preserve the representativity of each subsample, and all test work was performed on calibrated equipment subject to the laboratory's internal control program.

Head grades were determined in triplicate for total copper, together with sequential copper analysis (acid-soluble and cyanide-soluble copper), by AAS022D, AAS051D, SQL051D, SQL161D, SQLRES and AAS084T. Duplicate tests were performed on 10 per cent of the metallurgical tests. Solution chemistry -- dissolved copper, free acid, pH, total iron and ferrous iron -- was monitored throughout each test, and metallurgical balances were reviewed progressively as data became available and reconciled prior to final reporting.

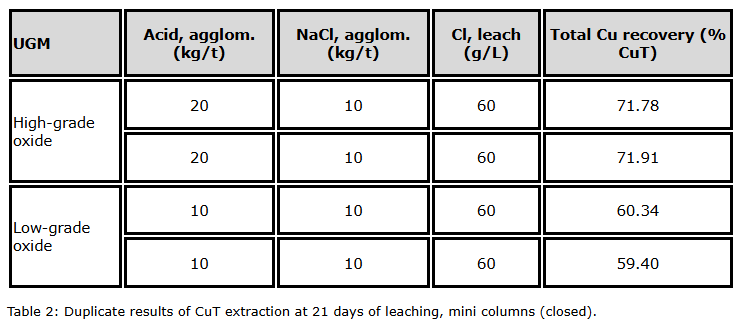

The control sample results were reviewed by the company's metallurgical team and all control results fell within acceptable tolerance. Duplicate mini-column tests returned copper extractions within one percentage point of one another (Table 2), confirming good reproducibility. Mini-column mass balance closes within plus or minus 5 per cent.

The composites tested were prepared from HQ infill drill cores selected to represent the high-grade oxide, low-grade oxide and mixed domains of the current mine plan, with a weighted-average head grade of 0.95 per cent, 0.35 per cent and 1.24 per cent CuT. Column test work on one-metre columns is continuing and the results reported herein are preliminary in nature.

Qualified person

Dr. Scott Jobin-Bevans, PGeo, PhD, PMP, a qualified person as defined by National Instrument 43-101 and independent geological consultant to the company, has reviewed and approved the technical information provided in this news release and verified the data disclosed, including the sampling, analytical and test data underlying the technical information contained in this news release. Specifically, the qualified person has verified selected laboratory assay results against reported drill core intervals as well as drill core logs against the geology, as supplied by the company.

Luis Hidalgo (chemical engineer) is a competent person (qualified person) in extractive metallurgy, as recognized by the commission responsible for qualifying competence in mineral resources and reserves, and is an independent metallurgical consultant. He has reviewed and approved the technical information presented in this press release. Specifically, the qualified person has verified preliminary metallurgical test results provided by the company by reviewing the reported head grades, copper extractions and acid consumptions from the laboratory's primary records.

About Fitzroy Minerals Inc.

Fitzroy Minerals is focused on exploring and developing copper-focused mineral assets with substantial upside potential in the Americas. The company's current property portfolio includes the Buen Retiro copper project located near Copiapo, Chile; the Caballos copper project and the Polimet gold-copper-silver project located in Valparaiso, Chile; the Taquetren gold project located in Rio Negro, Argentina; and the Caribou project in British Columbia, Canada. Fitzroy Minerals' shares are listed on the TSX Venture Exchange under the symbol FTZ and on the OTCQX under the symbol FTZFF.

We seek Safe Harbor.
